| Feature | Specification |
| Technology | Ion-Selective Electrode (ISE) |
| Throughput | 60 samples per hour |
| Measured Parameters | $Na^+$, $K^+$, $Cl^-$, $iCa^{++}$, $pH$, $Li^+$ |
| Sample Types | Whole Blood, Serum, Plasma, Urine, and CSF |
| Sample Volume | $\le$ 90 $\mu$L |
| Analysis Time | $\le$ 60 seconds |
| Calibration | Automatic (1-point with each sample; 2-point every 4/8/12 hrs) |
| Data Storage | Up to 10,000 patient records |
| Display | 5-inch Color LCD with Touchscreen |
| Printer | Built-in 2-inch Thermal Printer |

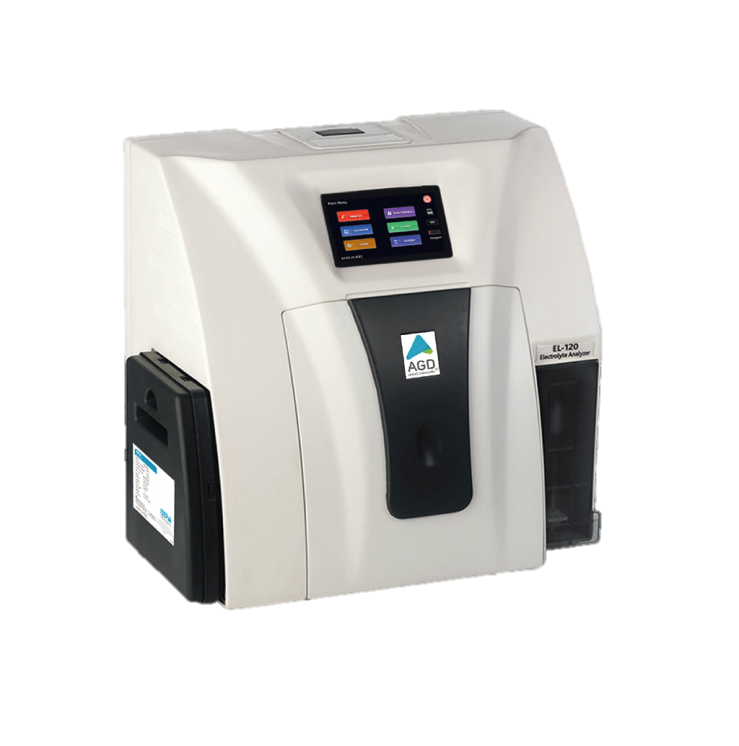

The EL-120 Electrolyte Analyzer is designed to balance high performance with economical operation. It is frequently highlighted for its NABL-ready features, including built-in quality control with Levy-Jennings (LJ) plots, which allows laboratories to maintain high standards of accreditation and compliance.
The device is particularly “user-friendly,” featuring an intuitive graphical user interface on a responsive touchscreen. It is engineered for minimal maintenance, using a sophisticated aspiration system with a peristaltic stepper motor to ensure precise sample handling and automated flushing to eliminate carryover between tests
