| Feature | Specification |
| System Function | Fully Automatic, Random Access, Bench-top |
| Throughput | Constant 200 tests/hour (Mono or double reagent) |
| Test Methods | 1-point end, 2-point end, Fixed-time, Kinetics |
| Sample Positions | 40 positions (supports micro cups and standard tubes) |
| Reagent Positions | 80 positions (40 for R1 & 40 for R2) |
| Refrigeration | 24-hour non-stop cooling (2°C – 14°C) |
| Reaction Volume | 150 $\mu$L – 330 $\mu$L |
| Optical System | 8 wavelengths (340nm to 700nm), Static Fiber/Grating |
| Water Consumption | $\le$ 8 Liters per hour (Maximum) |
| Weight | 45.4 kg |

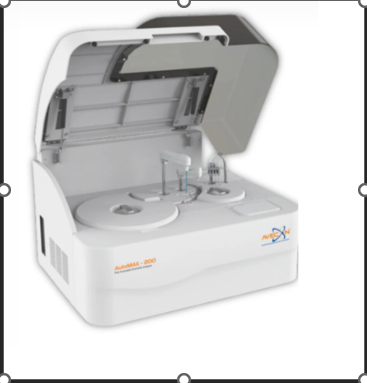

The AutoMax 200 is engineered for efficiency and low-cost operation. It features an advanced liquid surface detection system and collision protection for its multifunctional precision probe, ensuring sample integrity and hardware safety. One of its standout qualities is the minimum reaction volume of 150 $\mu$L, which significantly reduces reagent waste.
The analyzer is designed to be “user-friendly,” operating on standard Windows platforms (XP, 7, 8, 10). It includes a multi-stage on-board laundry system for cuvette cleaning and drying, which minimizes manual intervention and maintains high diagnostic accuracy
KEY FEATURES
• Best in class Technology
• Compact and user-friendly
• Independent probe & srrer
• Constant throughput of 200 tests/hour with double reagents
• Minimum Reacon Volume as low as 150 L, saves cost
• 80 Reagent and 40 Sample Posions.
• The reacon tray contains 44 UV Plasc reacon cuvees
• Mul wavelengths simultaneous detecon
• Maintenance Free semiconductor solid state refrigeraon
• Non-stop cooling system with peler pad inside
• Horizontal moving sampling and mixing arm, beer efficiency
• Mul-stage On-board laundry system
• Low water consumpon
